[JTC-DT11, DF11] Temperature Regulating Valve(Direct Acting Type) Old Model: JKTR-1S,1F

This is a small size direct acting type temperature controlling valve. It has small leakage with simple structure and easy installation. It is applicable for heating equipment such as rapid boiler tank, heat transfer or dryer.

详细描述

■ Features

1. Simple structure and easy to handle.
2. Temperature control range is set for 20℃ and has very little temperature difference.
3. It does not require auxiliary power such as electricity. That means easy installation.
4. Connecting Bronze part is covered with flexible tube to prevent damage.

■ Adjustable Temperature Range

Adjustable Temperature Range	Withstanding Temperature
40℃ ~60℃	70℃
60℃ ~80℃	90℃
80℃ ~100℃	110℃

■ Specifications

MODEL		JTC-DT11		JTC-DF11
Type		Direct Acting Type
Size		15A,20A,25A,32A,40A
Applicable Fluid		Steam
Connection		Screwed(PT)		Flange Type (10K FF)
Materials	Body	BRONZE		BRONZE or MALLEABLE CAST IRON
	Trim	BRASS & PTFE		STAINLESS & PTFE STEEL
	Thermo Bulb	COPPER TUBE
Applicable Pressure for Thermo Bulb		10kgf/_cm² {1.0MPa}
Length of Capillary Tube Pressure Limit at inlet		2m ( Up to 5m is available upon request )
		15A ~ 20A	25A	32A	40A
		5K	4K	3K	2K

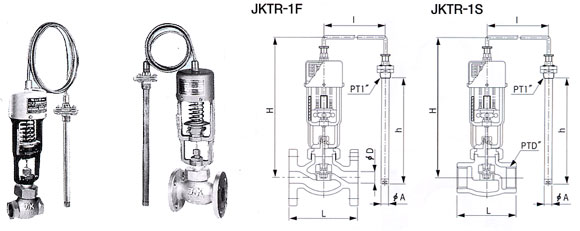

■ Dimensions (Unit: mm)

JTC-DF11

Unit:mm
SIZE	D	L	H	I	h	A	C_V
15A	15	108	405	2000	400	25.4	1.0
20A	20	117	410	2000	400	25.4	1.5
25A	25	127	415	2000	400	25.4	3
32A	32	140	423	2000	400	25.4	4
40A	40	165	435	2000	400	25.4	6

JTC-DT11

Unit:mm
SIZE	D	L	H	I	h	A	C_V
15A	¹/₂"	60	400	2000	400	25.4	1.5
20A	³/₄"	70	405	2000	400	25.4	1.5
25A	1"	80	410	2000	400	25.4	3
32A	1 ¹/₄"	90	420	2000	400	25.4	4
40A	1 ¹/₂"	100	430	2000	400	25.4	6
