Specifications

Type	Working Fluid	Setting Pressure	Working Temperature	Materials		Connection
				Body & Bonnet	Trim
Lever	Steam, Air	22~23	MAX. 250˚C	Cast Steel	Stainless Steel	JIS Flanged ANIS Flanged
No Lever	Water, Oil

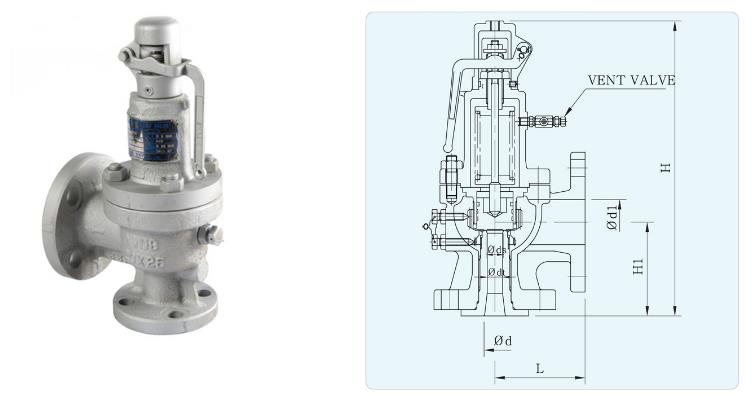

Dimensions

PART	d	dt	ds	L	H1	H	LIFT	Inlet	Outlet
SIZE
15A X 25A	15	11.5	14.5	95	85	282	3.0	JIS 30K RF Flanged	JIS 10K FF Flanged
20A X 25A	20	15	17.5	95	85	282	3.8
25A X 40A	25	19	22	100	105	320	4.8
40A X 65A	40	30	35	115	123	380	7.5
50A X 80A	50	38	44	128	130	476	9.5
65A X 100A	65	49	57	145	150	547	12.3
80A X 125A	80	61	71	162	168	598	15.2
100A X 150A	100	76	114	220	222	895	24.0
