[JGL-FF11,FF21] Globe Valve Old Model: JKV-GF10,20

[JGL-FF11,FF21] Globe Valve

详细描述

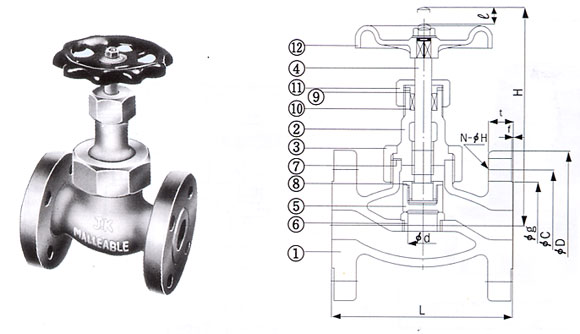

■ MATERIAL

NO	PART NAME	JGL-FF11,FF21
1	Body	MALLEABLE CAST IRON
2	Bonnet	MALLEABLE CAST IRON
3	Bonnet Net	MALLEABLE CAST IRON
4	Stem	STAINLESS STEEL
5	Disc	STAINLESS STEEL
6	Seat	STAINLESS STEEL
7	Gasket	ASBESTOS
8	Disc Holder	STAINLESS STEEL
9	Packing Gland	BRASS
10	Packing	ASBESTOS
11	Gland Nut	MALLEABLE CAST IRON
12	Hand Wheel	STEEL OR CAST IRON

■ SPECIFICATIONS

1.DESIGN PRESSURE:
                                JGL-FF11 :10kgf/cm²
                              JGL-FF21 :20kgf/cm²
2.DESIGN TEMP:MAX 350℃
3.CONNECTION:FLANGED
4.HYDROSTATIC:
                          JGL-FF11 :15kgf/cm²
                          JGL-FF21 :30kgf/cm²
5.LEAK TEST PRESSURE:12kgf/cm²
*15A ~ 50A:UNION BONNET
65A ~ 100A:YOKE BONNET

■ Dimensions (Unit: mm)

SIZE	d	JGL-FF11							JGL-FF21
SIZE	d	L	ℓ	H	D	t	C	N-h	L	ℓ	H	D	t	f	g	c	N-h
15A	15	108	9	135	95	12	70	4-15	110	9	135	95	14	1	51	70	4-15
20A	20	117	13	145	100	14	75	4-15	120	13	145	100	16	1	56	75	4-15
25A	25	127	15	167	125	14	90	4-19	130	15	167	125	16	1	67	90	4-19
32A	32	140	20	180	135	16	100	4-19	160	20	180	135	18	2	76	100	4-19
40A	40	165	22	195	140	16	105	4-19	180	22	195	140	18	2	81	105	4-19
50A	50	203	25	225	155	16	120	4-19	230	25	225	155	18	2	96	120	8-19
65A	65	216	22	320	175	18	140	4-19	292	22	360	175	20	2	116	140	8-19
80A	80	241	25	350	185	18	150	8-19	318	25	395	200	22	2	132	160	8-23
100A	100	292	31	390	210	18	175	8-19	356	35	415	225	24	2	160	185	8-23
