[JST-YT12,YT11] (Y Type Screwed) Old Model: JKB, FST-S

It is used for eliminating scale and impurity at the pipe line.

详细描述

■ Features

It is used for eliminating scale and impurity at the pipe line. Especially it is installed before the reducing valve, regulating valve and steam trap and used to prevent mal-function of pipe that caused by foreign materials. Our company makes large enough to considering the foreign material’s blocking the screen and cause liquid flow problem. Especially, JST-YT 11 type is KS product.

■ Materials

NO	NAME	JST-YT12	JST-YT11
1	Body	CAST BRONZE	CAST IRON
2	Cap	CAST BRONZE	CAST IRON/font>
3	Screen	STAINLESS STEEL	STAINLESS STEEL
4	Gasket	ASBESTOS	ASBESTOS
1. WORKING PRESSURE		Max 10kgf/§2{1.0MPa}	Max 10kgf/§2{1.0MPa}
2. WORKING TEMP		Max 220¡E	Max 220¡E
3. WORKING FLUID		A. S. W. NF	A. S. W. NF
4. CONNECTION		PT Screwed	PT Screwed

FLUID SYMBOL

1. A : Air

2. S : Steam

3. W : Water

4. NF : Noncorrosive Fluid

● JST-YT11 type is a KS product of KS B 1538.

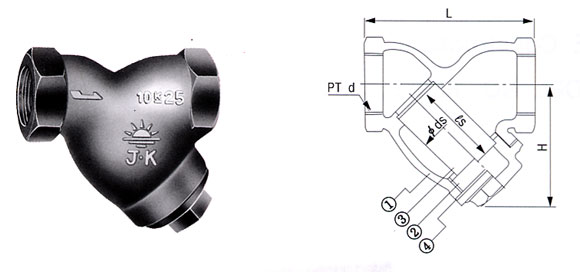

■ Dimensions

MODEL	PART	15A	20A	25A	32A	40A	50A
JST-YT12	d	PT¨o"	PT¨u"	PT1	PT1¨u"	PT1¨o"	PT2
	L	80	100	115	125	145	175
	H	60	65	73	78	95	111
	ds	19	23	28	34	44	54
	§¤s	36	47	49	58.5	70.5	96.5
JST-YT11	d	PT¨o"	PT¨u"	PT1	PT1¨u"	PT1¨o"	PT2
	L	80	94	114	140	152	174
	H	60	75	85	95	105	115
	ds	23	28	38	46	51	59
	§¤s	34.3	49	63	65	75.5	87.5

Above product may change specification without notice.
