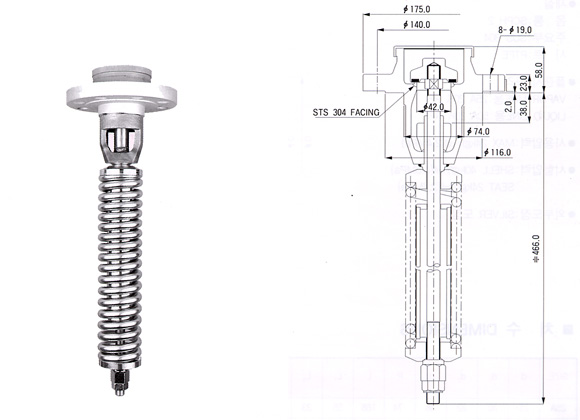

[JTL-ST31] Safety Valves for Tank Lorry (INTERNAL TYPE)
It is the internal safety valve used for tank lorry transporting liquefied gas. When an abnormal pressure on tank occurs, it exhausts the internal fluid and keeps the tank safe.
详细描述
■ Features
▶ It is the internal safety valve used for tank lorry transporting liquefied gas. When an abnormal pressure on tank occurs, it exhausts the internal fluid and keeps the tank safe.
▶ The spring is made of spring steel (SUP 9) and is coated by Chrome to prevent rust.
▶ Seat surface is deposited with SUS304, and teflon is used for seat packing.
▶ It is a built-in type so that it does not need a separate installation area..
▶ It is an approved product by Korea Gas Safety Corporation.
■ Specifications
▶ Material
Body : SCPH 2
Trim : SUS 304
Seat Disc : PTFE
▶Size : 50A
▶Flange Size : 65A 20K RF
▶Outside Painting : SILVER
■ The items specified prior to the ordering of Safety Valves
▶TANK Use Pressure
▶Set pressure of safety valve
▶Discharge Capacity
▶Use Fluid and Use Temperature
▶Connecting Method and Size (JK’s Size: 65A 20K RF)
