[JSV-BF31] Safety Valve with Balanced Bellows Type Old Model: SSRF-B

This valve is generally used for pressure vessels, tracing equipments and pipes at the petroleum, gas and chemical plant. This is especially used on the place which is influenced by a back pressure of outlet side, the place which is not allowed fluid’s flowing to outside of safety valve and the place which has some worrying about distortion or corrosion of spring by corrosiveness of fluid or temperature.

详细描述

■ FEATURES

1. This valve is designed and produced based on the size of safety valve for steam and gas (KS B 6276).
2. Since this valve adapts bellows of balance structure, its structure is not influenced by a back pressure.
3. The structure does not allow outflow of the fluid to safety valve’s body, thus, this valve would use for poison gas or flammable gas.

4. Since this valve is a lift type structure, it could obtain larger capacity than the safety valve with a full bore type.

5. The main materials of inside is made of STS316, so this valve has an excellent corrosion resistance.

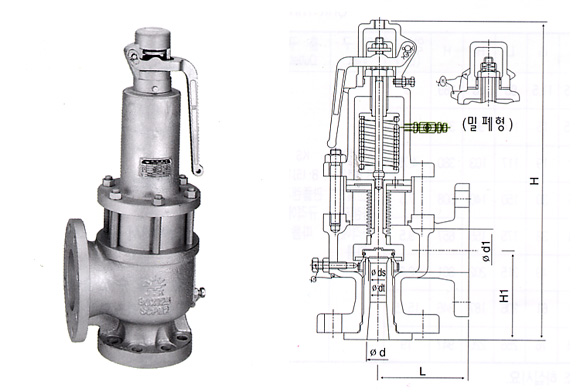

■ Dimensions (Unit: mm)

Size	d	d₁	d_S	dt	L	H₁	H	Lift (ℓ)	Inlet	Outlet
20A×40A	20	40	17.5	15	100	100	333	3.75	KS 10K RF Flanged (KS B 6216)	KS 10K FF Flanged (KS B 1511)
25A×40A	25	40	22	19	100	104	372	4.75
25A×50A	25	50	22	19	100	104	372	4.75
40A×65A	40	65	35	30	115	119	476	7.5
50A×80A	50	80	44	38	128	130	544	9.5
65A×100A	65	100	57	49	144	150	635	12.25
80A×125A	80	125	71	61	162	168	701	15.25
100A×500A	100	150	88	76	190	203	825	19

■ SPECIFICATIONS

TYPE	Applicable FLUID	Applicable Pressure (kgf/㎠) {MPa}	Max. Operating Temp' (℃)	MATERIAL		CONNECTION	HYDRAULIC PRESSURE TEST
				Body and TRIM	BONNET
LEVER TYPE	AIR, GAS	0.7~1.0 {0.07~0.1} 1.0~3.0 {0.1~0.3} 3.0~6.0 {0.3~0.6} 6.0~12.0 {0.6~1.2} 12.0~22.0 {1.2~2.2}	400	CAST STEEL	STAINLESS STEEL	INLET : KS 10K RF Flanged (KS B 6216) OUTLET : KS 10K FF Flanged (KS B 1511)	66kgf/㎠ {6.6MPa}
	LIQUIDS, WATER (HOT WATER)

* ANSI, JIS flanges are available upon request.
