GSV-2F/3F燃气用全启式安全阀

法兰连接燃气GAS安全阀

详细描述

Specifications
Type	Working Fluid	Setting Pressure	Working Temperature	Materials		Connection
Type	Working Fluid	Setting Pressure	Working Temperature	Body & Bonnet	Trim	Connection
GSV-2F	Gas	22 Under	MAX. 250˚C	Cast Steel	Stainless Steel	JIS Flanged ANIS Flanged
GSV-3F	Gas	33 Under	MAX. 250˚C	Cast Steel	Stainless Steel	JIS Flanged ANIS Flanged

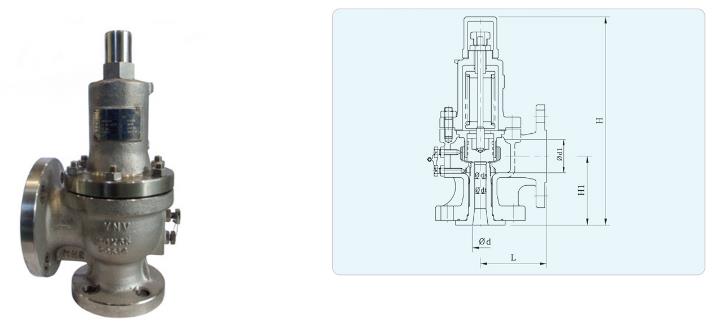

Dimensions
Model	SIZE	d	dt	ds	L	H1	H	LIFT	Inlet	Outlet
GSV-2F	15A X 25A	15	11.5	14.5	95	85	282	3.0	JIS 10KRF, JIS 20K RF, Flanged	JIS 10K, Flanged
	20A X 25A	20	15	17.5	95	85	282	3.8
	25A X 40A	25	19	22	100	105	320	4.8
	32A X 65A	32	30	35	115	123	380	7.5
	40A X 65A	40	30	35	115	123	380	7.5
	50A X 80A	50	38	44	128	130	476	9.5
	65A X 100A	65	49	57	145	150	547	12.3
	80A X 125A	80	61	71	162	168	598	15.2
	100A X 150A	100	76	88	190	197	725	19.0
	125A X 200A	125	95	114	220	222	895	24.0
	150A X 200A	150	115	133	225	230	953	28.7
	200A X 250A	200	150	175	270	255	1121	37.5
	250A X 300A	250	200	230	410	350	1720	50.0
GSV-3F	15A X 25A	15	11.5	14.5	95	85	282	3.0	JIS 30K RF Flanged	JIS 10K FF Flanged
	20A X 25A	20	15	17.5	95	85	282	3.8
	25A X 40A	25	19	22	100	105	320	4.8
	40A X 65A	40	30	35	115	123	380	7.5
	50A X 80A	50	38	44	128	130	476	9.5
	65A X 100A	65	49	57	145	150	547	12.3
	80A X 125A	80	61	71	162	168	598	15.2
	100A X 150A	100	76	88	190	197	725	19.0
