FLT-1S/1F浮球疏水阀

浮球蒸汽疏水阀

详细描述

FLT-1S/1F

For Application to larger capacity than thermodynamic trap such as heat exchanger, dryer, chemical plant, and various steam systems. Excellent durability of stainless steel disc, seat, and ball float. Inbuilt air vent assembly to eliminate air-binding.
All parts are installed at the bonnet, and the integral bonnet would be helpful for easy maintenance.

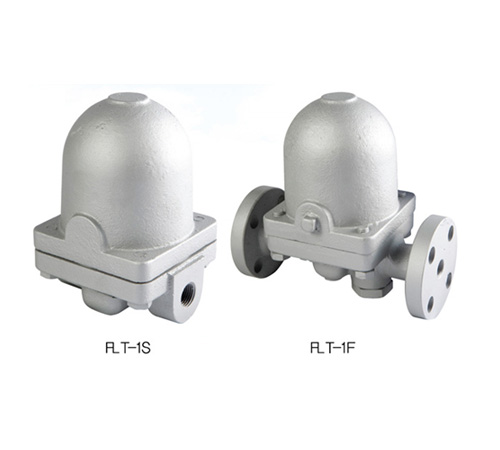

flt-1s1f_01_main

flt-1s1f_02

Specifications
Working Pressure	Max. 4.5, 10, 14kgf/cm2
Working Pressure	Min. 0.35 kgf/cm2
Working Temperature	Max. 220˚C
Connection	FLT-1S : PT Screwed
Connection	FLT-1F : JIS Flanged
Materials	Body : Ductile lron
Materials	Trim : Stainless Steel

Dimensions
Model	Size	d	L	H1	H	Connection
FLT-1S	15A	PT 1/2″	120	110	155	PT Screwed
	20A	PT 3/4″	120	110	155
	25A	PT 1″	120	185	190
	32A	PT 1 1/4″	270	240	295
	40A	PT 1 1/2″	270	240	295
	50A	PT 2″	300	260	310
FLT-1F	15A	15	200	110	170	JIS 10K Flanged
	20A	20	200	110	170
	25A	25	215	185	190
	32A	32	320	240	295
	40A	40	320	240	295
	50A	50	360	260	310

flt-1s1f_03
