DST-1S/1F 蒸汽疏水阀
热动力疏水阀

详细描述

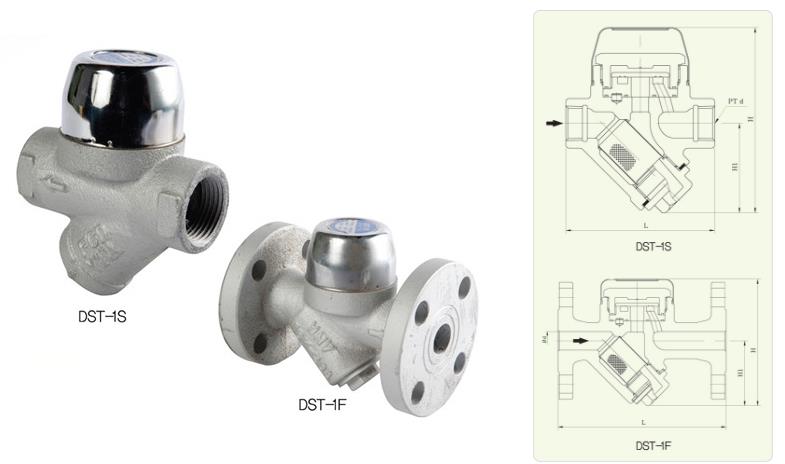

DST-1S/1F

  • Insulation chamber(air warm) is adopted to lessen the affect of atmosphere and to improve the most suitable working conditions.
  • The maintenance and repair of disc and are easy owing to its material of high-hardness-treated stainless steel and its replaceable seat.

Specifications
Working Pressure Max. 16kgf/cm2
Min. 0.35 kgf/cm2
Working Temperature Max. 220˚C
Connection DST-1S : PT Screwed
DST-1F : JIS Flanged
Materials Body : Ductile lron
Trim : Stainless Steel
dst-1s1f_02
dst-1s1f_03
Dimensions
Model Size d L H1 H Connection
DST-1S 15A PT 1/2″ 90 54 104 PT Screwed
20A PT 3/4″ 95 56 108
25A PT 1″ 100 58 112
32A PT 1 1/4″ 180 100 180
40A PT 1 1/2″ 180 110 205
DST-1F 15A 15 136 53 103 JIS 16K Flanged
20A 20 140 55 108
25A 25 150 58 113
32A 32 190 103 185
40A 40 260 112 206
50A 40 260 112 206
