DST-3S热动力疏水阀
蒸汽疏水阀

详细描述

DST-3S

  • Simple and Small construction
  • No trouble & low repair cost owing to integral construction of body & seat.
  • Excellent durability owing to the heat-treated disc and seat.




Specifications
Working Pressure Max. 20kgf/cm2
Min. 0.35 kgf/cm2
Working Temperature Max. 250˚C
Connection PT Screwed
Materials Body : Stainless Steel
Trim : Stainless Steel

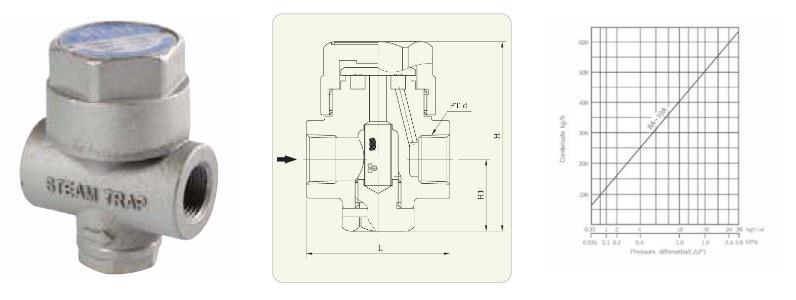

Dimensions
Size d L H1 H Connection
8A PT 1/4″ 50 24 63 PT Screwed
10A PT 3/8″ 50 24 63
