DRG-1F一次压力调整阀
一次侧压力调节阀，背压阀

详细描述

DRG-1F

  • Self operated pressure regulating valve for discharging the over pressure to maintain a regular pressure at the pipe arrangement so it is a kind of relief valve.

  • It is used for air regulating equipment.


Working Pressure(kgf/cm2) 10
Adjustment Range(kgf/cm2) 0.5~7
Working Temperature(˚C) Max. 80
Specifications
Working Fluid Air, Water, Liquid
Type Diaphragm Type
Connection JIS 10K Flanged
Materials Body : Ductile Iron
Trim : Bronze, Synthetic Rubber

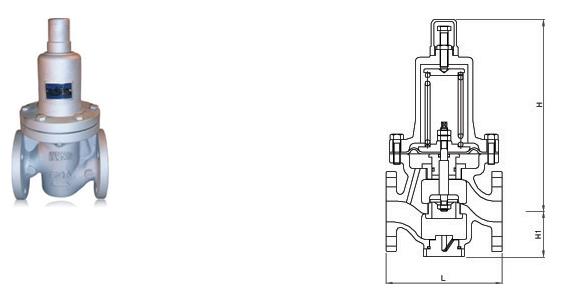

Dimensions
SIZE 15A 20A 25A 32A 40A 50A 65A 80A 100A 125A 150A
PART
L 160 160 160 180 180 190 230 250 300 370 400
H1 65 65 65 76 76 78 95 107 124 145 160
H 335 335 335 400 400 407 505 525 595 725 761
