GSV-3S/4S燃气安全阀
燃气gas安全阀

详细描述

Specifications
Type Working Fluid Setting Pressure Working Temperature Materials Connection
Body Bonnet Trim
GSV-3S Gas 0.35~33 MAX. 220˚C Stainless Steel Bronze Stainless Steel PT Screwed
GSV-4S Stainless Steel Stainless Steel Stainless Steel

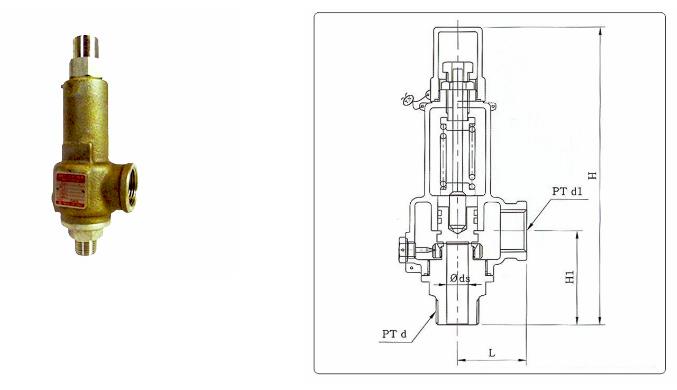

Dimensions
PART d ds L H1 H LIFT Inlet Outlet
SIZE
15A X 20A 15 14 42 61 183 1.0 PT Screwed PT Screwed
20A X 20A 20 14 42 61 185 1.0
25A X 25A 25 19 44 69 202 1.7
32A X 32A 32 24 45 71 190 2.2
40A X 40A 40 27 55 79 211 2.3
50A X 50A 50 33 65 93 234 2.5
