LSV-1S安全阀
低扬程安全阀

详细描述

LSV-1S




Specifications
Type Working Fluid Setting Pressure Working Temperature Materials Connection
Body & Bonnet Trim
Lever Steam, Air 0.35~11 MAX. 220˚C Cast Bronze Forged Brass PT Screwed
No Lever Water, Oil

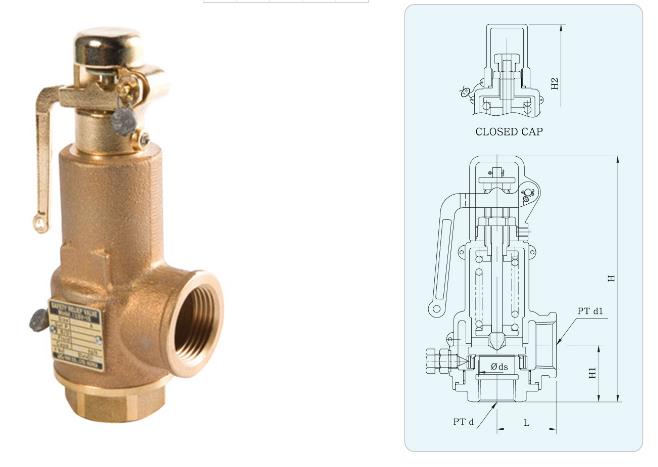

Dimensions
PART d ds L H1 H LIFT Inlet Outlet
SIZE
15A X 20A 15 21 33.5 40. 149 1.0 PT Screwed PT Screwed
