[JSD-WF11]SUCTION DIFFUSER Old Model: SDF1

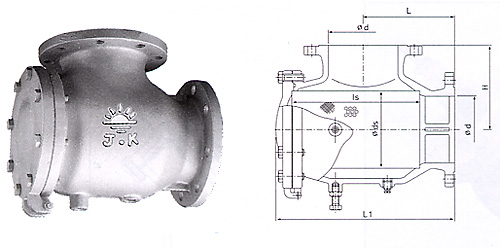

This is designed to be installed directly on the suction part of pump vertically or horizontally. This can remove harmful foreign materials to pump or other part and also provide stable flow of fluid by guide vane. Using this at the place with limited space, you can save piping material for installation.
详细描述
This is designed to be installed directly on the suction part of pump vertically or horizontally. This can remove harmful foreign materials to pump or other part and also provide stable flow of fluid by guide vane. Using this at the place with limited space, you can save piping material for installation. Overall system pressure down is not necessary for this and associating pipe fitting is minimum one.
■ Features
? It can be replace the suction part of pump elbow, strainer, beginning part of pipe and reducing installation cost.
, During initial testing? start-up strainer can protect the system from foreign materials.
? Outlet Guide Vane prevent stress and erosion on pump by reducing mixed current on the suction part.
? On designing use of large grid filter can increase suction guide or decrease pressure decrease.
? Using hinge installation helps easy filter clean-up and using o-ring instead of sheet gas-kit will increase sealing effect and easy maintenance.
? There is a separate port for gauge installation and does not need to other installation for the purpose.
? the height of supporting bar can be adjusted.

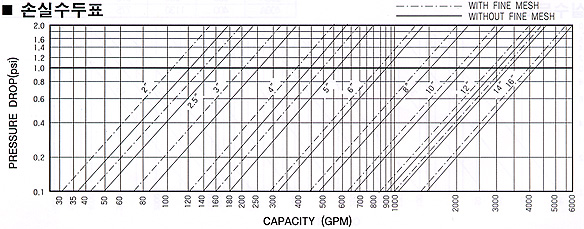

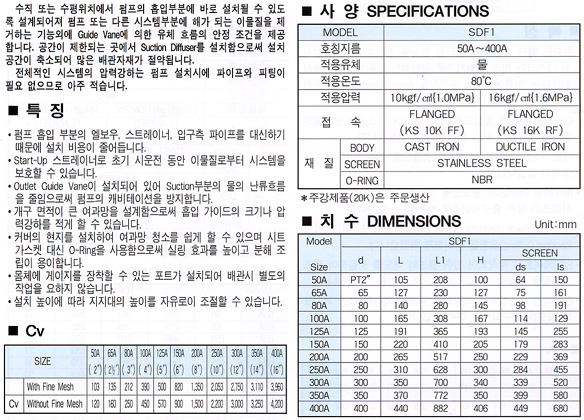

■ Specifications
|
MODEL
|
SDFI
|
|
Size
|
50A～400A
|
|
Applicable fluid
|
Water
|
|
Working Temp.
|
80℃
|
|
Applicable Pressure
|
10kgf/㎤{1.0MPa}
|
16kgf/㎤{1.6MPa}
|
|
Connection
|
FLANGED
(KS 10K FF)
|
FLANGED
(KS 16K RF)
|
|
Material
|
BODY
|
CAST IRON
|
DUCTILE IRON
|
|
SCREEN
|
STAINLESS STEEL
|
|
O-RING
|
NBR
|
※ Cast Steel Products(20K) are available upon request.
