[JTC-DF12]Temperature Regulating Valve Old Model: JKTR-2F
This is a double disk direct acting type temperature controlling valve. This has simple structure and that help an easy installation.
详细描述
This is a double disk direct acting type temperature controlling valve. This has simple structure and that help an easy installation.
This is applicable for heating equip such as rapid boiler tank or heat transfer or dryer tank.
■ Features
? Simple structure and easy handling.
? Temperature control range is set for 20℃ and has very little temperature difference.
It does not require auxiliary power such as electricity. That means easy installation.
. Connecting Bronze part is covered with flexible tube to prevent damage.
■ Specifications
|
MODEL
|
TDFI
|
|
Type
|
Direct Acting Type
|
|
Size
|
50A～400A
|
|
Applicable Fluid
|
Steam
|
|
Connection
|
FLANGED (10K FF)
|
|
Materials
|
Body
|
DUCTILE IRON
|
|
Trim
|
STAINLESS STEEL
|
|
Thermo Bulb
|
COPPER TUBE
|
|
Applicable Pressure for Thermo Bulb
|
10kgf/㎤{1.0MPa}
|
|
Length of Capillary Tube
|
2m(Up to 5m is available upon request)
|
|
Working Pressure
|
Max. 10K{1.0MPa}
|

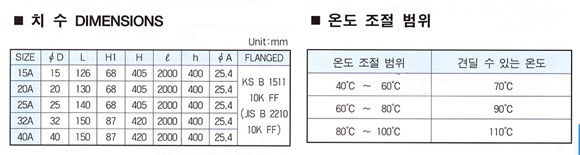

■ Adjustable Temperature Range
|
Adjustable TemperatureRange
|
Withstanding Temperature
|
|
40℃~60℃
|
70℃
|
|
60℃~80℃
|
90℃
|
|
80℃~100℃
|
110℃
|
