[JDG-NT11]SERIES Sight Glass (Double Window Type) Old Model: JKD-GI
JDG-NT11 works as a site check. It has transparent structure on both sides to check fluid status and check fluid back flow or steam trap operation check.
详细描述
■ Features
JKS-CK works as a site check. It has transparent structure on both sides to check fluid status and check fluid back flow or steam trap operation check. The glass material is made of special tempered glass and endurable for pressure. Internal wing is made of stainless steel and help to check minute fluid status.

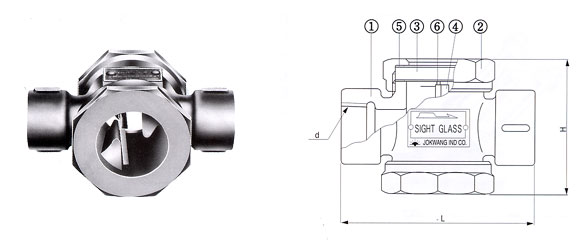

■ MATERIAL
NO
PART NAME
JDG-NT11
1
Body
CAST IRON
2
Cap
CAST IRON
3
sight glass
GLASS,HEAT TREATED
4
Flapper
STAINLESS STEEL
5
Gasket
ASBESTOS
6
Pin
STAINLESS STEEL
■ SPECIFICATIONS
1. WORKING PRESSURE : MAX 10 kgf/cm2{1.0MPa}
2. WORKING TEMP : MAX 220℃
3. CONNECTION : SCREWED
