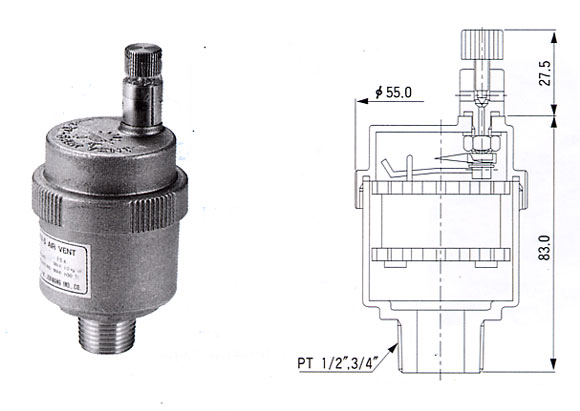

[JAV-FT11] Air Vent for Water (Float Type) Old Model: JKV-6
The disk is operated by a spring. It is small and simple structure yield durability. It uses float that helps diffusion of air and stable operation and the air drainage ability is excellent.
详细描述
■ Features
The disk is operated by a spring. It is small and simple structure yield durability. It uses float that helps diffusion of air and stable operation and the air drainage ability is excellent.
■ Installation Example and Caution
1. Install the valve vertically with allowance within 5° from the vertical axis.
2. Prior to installation, remove foreign matters remaining in piping and equipment.
3. To prepare maintenance inspection, should install a cork or a valve in inlet side.
4. In case of occurring leakage in outlet side, you should close the manual closing handle.
■ Specifications
1. Size : 15A, 20A
2. Applicable Fluid : Cold and hot water
3. Working Pressure : MAX 10kgf/ cm2 {1.0MPa}
4. Working Temp. : MAX 100℃
5. Connection : KS PT SCREWED
6. Materials :
Body ? Forged Brass
Float ? Polyethylene Resin
Disc - Si RUBBER
7. Hydro. Pressure Test : 1.5 times by Working Pressure
