[JGL-FT11]Globe Valve Old Model: JKV-GS10

[JGL-FT11]Globe Valve

详细描述

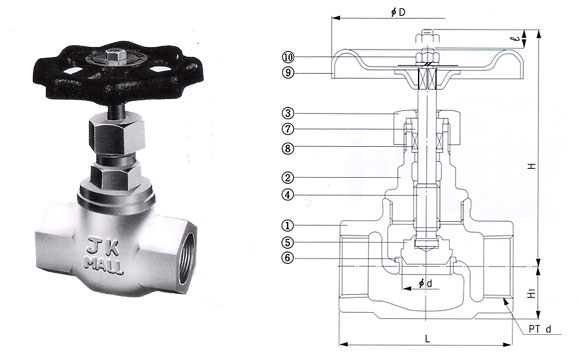

■ MATERIAL

NO	PART NAME	JKV-GS 10
1	Body	MALLEABLE CAST IRON
2	Bonnet	MALLEABLE CAST IRON
3	Gland Nut	MALLEABLE CAST IRON
4	Stem	STAINLESS STEEL
5	Disc	STAINLESS STEEL
6	Seat	STAINLESS STEEL
7	Paking Gland	ROLLED STEEL
8	Packing	ASBESTOS
9	Hand Wheel	ROLLED STEEL
10	Nut	CARBON STEEL

■ Specifications

1 . DESIGN PRESSURE : 10kgf/cm²{1.0MPa}
2 . DESIGN TEMP' : 220℃
3 . CONNECTION : SCREWED
4 . HYDROSTATIC : 15kg/cm²{1.5MPa}
5 . LEAK TEST PRESSURE: 6kgf/cm² {0.6MPa}

■ Dimensions (Unit: mm)

SIZE	10A	15A	20A	25A	32A	40A	50A
PART	10A	15A	20A	25A	32A	40A	50A
PTd	³ /_8^"	^{1 /_2"}	³ /_{4 "}	1 ^"	1 ¹ /_4 ^"	1 ¹ /_2 ^"	2^"
L	55	65	80	90	105	120	140
H	85	85	105	125	140	155	180
ℓ	4	6	8	10	13	16	20
H₁	17	18	22	27	33	37
D	60	60	80	90	100	120	140
CONNECTION	KS B 0222 PT SCREWED
