[JSV-FF11] Full Bore Type Safety Relief Valve
Full Bore Type Safety Relief Valve
详细描述

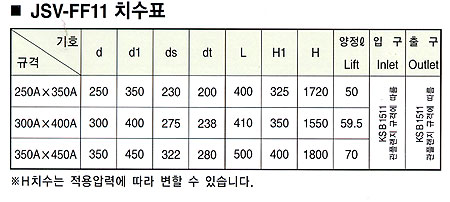

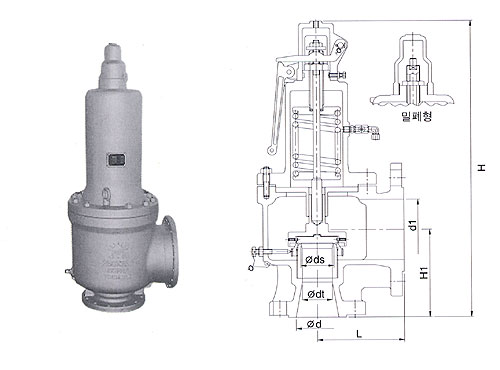

■ JSV-FF11 Dimension Table
|
Mark
Size
|
d
|
d1
|
ds
|
dt
|
L
|
H1
|
H
|
Lift (ℓ)
|
Inlet
|
Outlet
|
|
250A X 350A
|
250
|
350
|
230
|
200
|
400
|
325
|
1750
|
50
|
KS 10K FF Flanged (KS B 1511)
|
KS 10K FF Flanged (KS B 1511)
|
|
300A X 400A
|
300
|
400
|
275
|
238
|
410
|
350
|
1550
|
59.5
|
|
350A X 450A
|
350
|
450
|
322
|
280
|
500
|
400
|
1800
|
70
|

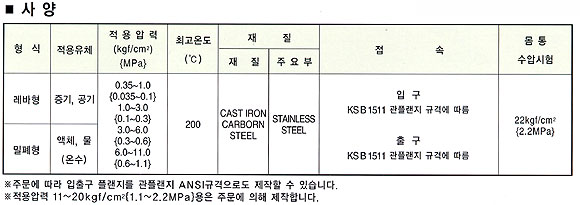

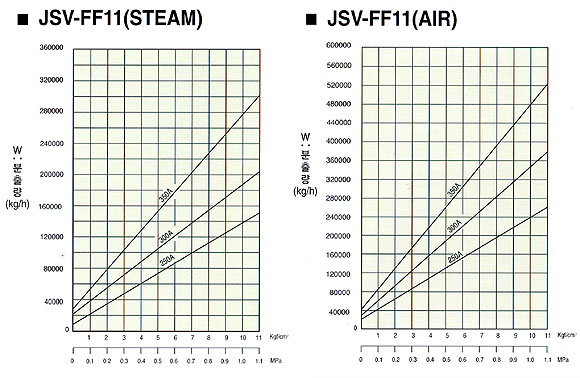

■ Specifications
|
TYPE
|
Applicable FLUID
|
Applicable Pressure
(kgf/㎠)｛MPa｝
|
Max. Operating Temp' (℃)
|
MATERIAL
|
CONNECTION
|
HYDRAULIC PRESSURE TEST
|
|
BODY AND TRIM
|
BONNET
|
|
LEVER TYPE
|
STEAM, AIR,
|
0.35~1.0 {0.035~0.1} 1.0~3.0 {0.1~0.3} 3.0~6.0 {0.3~0.6} 6.0~11.0 {0.6~1.1}
|
200
|
CAST IRON CARBORN STEEL
|
STAINLESS STEEL
|
Inlet:
KS 10K FF Flanged (KS B 1511)
Outlet:
KS 10K FF Flanged (KS B 1511)
|
22kgf/cm{2.2MPa}
|
|
PACKED TYPE
|
LIQUIDS, WATER(HOT WATER)
|
200
|
※ ANSI and DIN flange are available upon request.
※ The working pressure 11～20kgf/㎠{1.1～2.2MPa} is available upon request.
