[JST-BF01] (BUCKET Type) Old Model: JKSB Series

It is generally installed at the horizontal pipe arrangement. It can be produced from small size to large size.

详细描述

■ Features

It is generally installed at the horizontal pipe arrangement. It can be produced from small size to large size. Especially it is suitable for the pump suction which is a large capacity and many of foreign materials as B-C Oil or the fluid which is a high viscosity.

■ Materials

- CABON STEEL, STAINLESS STEEL, CAST IRON, CAST STEEL, STAINLESS CASTING and so on.
- KS, JIS, and ANSI size are all available. 제작

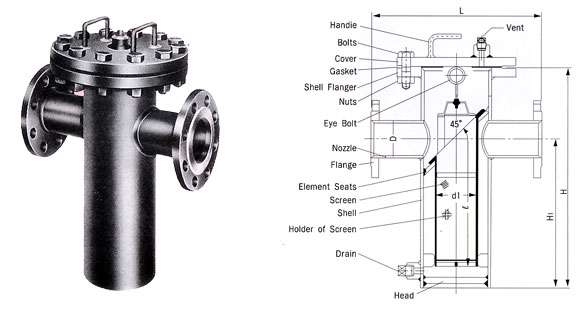

■ Dimensions (Unit: mm)

Size	D	L	H	H₁	Element		Plug (PT)
Size	D	L	H	H₁	d₁	ℓ	Plug (PT)
50A(2B)	60.5	350	340	190	70	140	¾"
80A(3B)	89.1	400	400	220	100	170	¾"
100A(4B)	114.3	500	480	280	130	220	¾"
150A(6B)	165.2	580	650	400	180	330	¾"
200A(8B)	216.3	650	840	560	220	480	¾"
250A(10B)	267.4	800	1050	700	280	600	¾"
300A(12B)	318.5	850	1250	850	310	740	¾"
350A(14B)	355.6	950	1430	980	340	870	¾"
400A(16B)	406.4	1000	1650	1150	420	1000	¾"
450A(18B)	457.2	1100	1850	1300	460	1150	¾"
500A(20B)	508.0	1100	2000	1400	520	1250	¾"
600A(24B)	609.6	1400	2450	1750	620	1550	¾"

*WIRE MESH and SCREEN of HOLE PITCH can be manufactured upon request.
