[JST-YF11,YF21] (Y Type Flanged) Old Model: FST-F, SST
It is generally used for eliminating scale and impurity at the high pressure pipe line in factory and all kind of plant.

详细描述

■ Features
It is generally used for eliminating scale and impurity at the high pressure pipe line in factory and all kind of plant. Especially it is installed before the reducing valve, regulating valve and steam trap and used to prevent mal-function of pipe that caused by foreign materials. Our company makes large enough to considering the foreign material’s blocking the screen and cause liquid flow problem.  Especially, FST-F type is KS product.

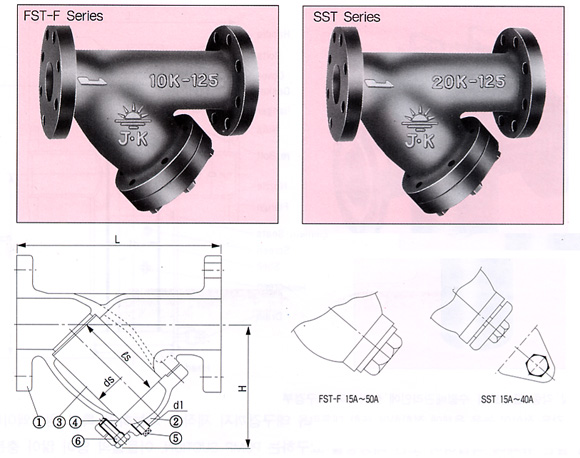

■ Materials
NO
NAME
JST-YF11

JST-YF21

1
Body
CAST IRON
CAST CARBON STEEL
2
Cap
CAST IRON
CAST CARBON STEEL
3
Screen
STAINLESS STEEL
STAINLESS STEEL
4
Gasket
ASBESTOS
ASBESTOS
5
Plug
MALLEABLE IRON
CARBON STEEL
6
Bolt
CARBON STEEL
CARBON STEEL
1. WORKING PRESSURE
Max 10kgf/㎠{1.0MPa}
Max 20kgf/㎠{2.0MPa}
2. WORKING TEMP
Max 220℃
Max 300℃
3. WORKING FLUID
A. S. W. NF
A. S. W. NF
4. CONNECTION
10K FF Flange
10K RF Flange
FLUID SYMBOL
1. A : Air
2. S : Steam
3. W : Water
4. NF : Noncorrosive Fluid

FST-F type is a KS Product of 65A KS B 1538
