[JTR-BF11] Bucket Trap (MECHANICAL TYPE) Old Model: JKD-BT2

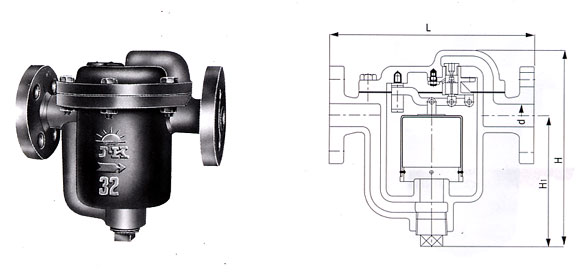

[JTR-BF11] This is a bucket trap with FLANGE TYPE

详细描述

■ MATERIAL

NO	PART NAME	JTR-BF11
1	Body	CAST IRON
2	Cover	CAST IRON
3	Seat	STAINLESS STEEL
4	Disc	STAINLEESS STEEL
5	Bucket	STAINLESS STEEL
6	Lever	CAST BRONZE
7	Lever Braket	CAST BRONZE
8	Bolt	CARBON STEEL
9	Gasket	ASBESTOS
10	Plug	MALLEABLE CAST IRON

■ SPECIFICATIONS

1.WORKING PRESSURE:
                                    MAX : 7 kgf/cm² {0.7MPa}
                                    MIN : 0.35 kgf/cm² {0.035MPa}
2. WORKING TEM'P: MAX 220℃
3. CONNECTION :
                            JTR-BF11 : FLANGED
4. HYDROSTATIC :10 kgf/cm² {1.0MPa}

■ Dimensions (Unit: mm)

MODEL	JTR-BF11
PART/SIZE	32A	40A	50A	65A	80A	100A
d	32	40	50	65	80	100
L	280	290	350	400	400	492
H₁	190	210	250	290	290	360
H	275	320	385	450	450	520
CONNECTION	KS B 1511 10K FF.FLANGED
