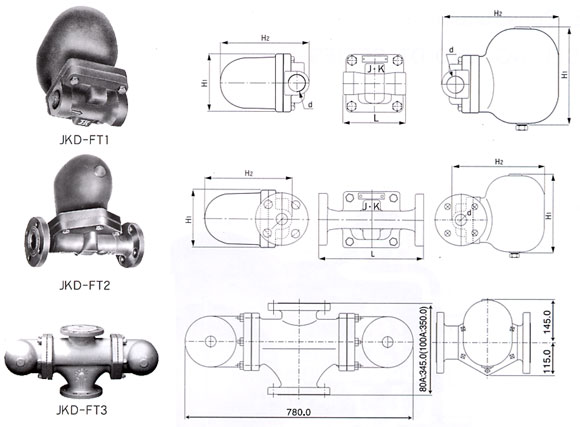

[JTR-FT12, FF12] Ball Float Trap (Mechanical Type) Old Model: JKD-FT1,FT2
JTR-FT12, FF12 type steam trap use buoyancy and has many excellent features. It is applicable for heat transmitter, unit heater, drier, chemical plan steam equipment, and others and contributes to energy saving with high precision.
详细描述
■ FEATURES
1. JKD-FT type steam trap use buoyancy and has many excellent features. It is applicable for heat transmitter, unit heater, drier, chemical plan steam equipment, and others and contributes to energy saving with high precision.
2. Trim has a cover and has a simple structure and is designed to help an easy maintenance. The sheet a disk made of stainless steel and precisely manufactured so that it has an excellent durability.
3. To solve the air binding, the air vent is built-in. In case of necessary, the air solution device could be installed.
4. Since this is a continuous discharge type, the usages are various and it could be used to discharge of multi-condense water.
■ MATERIAL
NO
PART NAME
JTR-FT12,FF12
1
Body
CAST IRON
2
Bonnet
CAST IRON
3
Seat
C.STAINLESS STEEL
4
Seat Body
C.STAINLEESS STEEL
5
Disc
STAINLESS STEEL
6
Stem
STAINLESS STEEL
7
Ball
STAINLESS STEEL
8
Lever
C.STAINLESS STEEL
9
Gasket
ASBESTOS
10
Bolt
CARBON STEEL
11
Air Vent Assy
STAINLESS STEEL
■ SPECIFICATIONS
1.WORKING PRESSURE: 4.5 kgf/cm2, 10 kgf/cm2, 14 kgf/cm2
2. WORKING TEMP : 220℃
3. CONNECTION
JKD-FT 1: SCREWED
JKD-FT 2: FLANGED
4. Hydrostatic Test Pressure : 1.5 times setting up pressure
