[JTR-WT11]Radiator Trap (WAX TYPE) Old Model: BRT-4
Since it adapts a simple operating structure using wax, its durability is excellent and any noise and vibration-free in case of discharging condensed water.
详细描述
■ FEATURES
1. Since it adapts a simple operating structure using wax, its durability is excellent and any noise and vibration-free in case of discharging condensed water.
2. Since temperature of discharging condensed water is below than100℃ and there is no steam loss.
3. For initial operation, low-temperature condensed water and air can be discharged quickly. Since the internal part is installed inside of upper-top part of cover, it is easy to replace and used for semi-permanently.
4. Size is available for KS B 6403 heater grill trap size.
■ Cautions at Sizing
1. At sizing, ensure to select the steam trap size to drain condense loads 3 times the expected safety factor.
2. In case of any back pressure at the steam trap outlet side, choose the trap size by the pressure differential between inlet and outlet pressure.
■ SPECIFICATIONS
1. WORKING PRESSURE : 0.1 ~ 1.5, 1.5~ 3 kgf/cm2 {0.01~0.15,0.15~0.3MPa}
2. WORKING TEMP : MAX 150℃
3. CONNECTION: KS PT SCREWED
4. MATERIALS:
Body ? Forged Brass
Trim - Stainless Steel
5. Hydrostatic test pressure: 6kgf/cm2

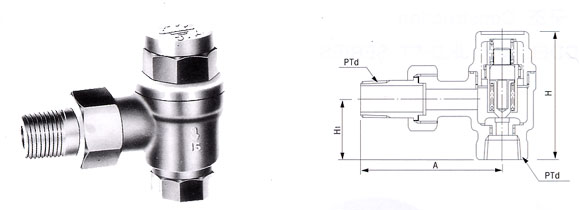

■ Dimensions (Unit: mm)
호칭경
A
H₁
H
PTd
WEIGHT
15A
80
35
73.5
½"
0.5
20A
87
41
79.5
¾"
0.6
* The above capacity is based on continue discharge capacity.
* You may select a trap which has an enough capacity at least 3 to 4 times bigger than the required flow in consideration of an initial load and the system pressure’s fluctuation.
