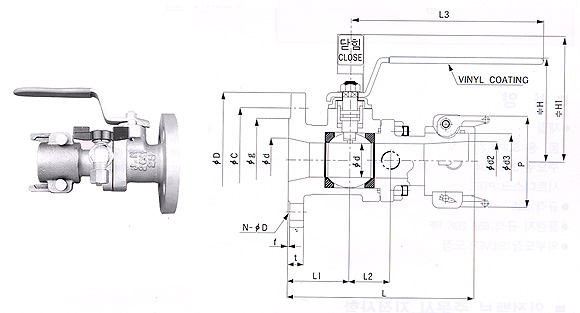

[JTL-TF31] Switch Valve for Tank Lorry (BALL TYPE) Old Model: TLT-1
It is the switching valve used for tank lorry transporting liquefied gas. It is made of ball valve. Therefore, there is no leakage and it is easy to open and close.
详细描述
■ Features
▶ It is the switching valve used for tank lorry transporting liquefied gas. It is made of ball valve. Therefore, there is no leakage and it is easy to open and close.
▶Breeder valve(ball valve) has been installed to remove the left-over gas from moving gas TANK LORRY to storage TANK or storage TANK to TANK LORRY.
▶Coffering cover installed to protect coffering tube during the transportation.
▶Nominal Diameter 25A : For VAPOR LINE
Nominal Diameter 50A : For LIQUID LINE
■ Specifications
▶ Material
Body : SCPH 2
Trim : SUS 304
Seat : PTFE
▶ Flange Size
▶For VAPOR LINE : 25A 20K RF
▶For LIQUID LINE : 50A 20K RF
▶Use Pressure : MAX 24kgf/cm2 {2.4MPa}
▶Test Pressure : SHELL 40kgf/cm2 {4.0MPa}
SEAT 24kgf/cm2 {2.4MPa}
▶Outside Painting : LIVER
