JSV-HT42 SERIES Safety Valves for gas (HIGH LIFT TYPE)

详细描述

■ MATERIAL

NO	PART NAME	JSV-HT43	JSV-HT42
1	Body	STAINLESS STEEL	STAINLESS STEEL
2	Bonnet	CAST BRONZE	CAST ST. ST
3	Cap	CAST BRONZE	STAINLESS STEEL
4	Disc	STAINLESS STEEL	STAINLESS STEEL
5	Adjust Ring	STAINLESS STEEL	STAINLESS STEEL
6	Stem	STAINLESS STEEL	STAINLESS STEEL
7	Spring	CARBON STEEL	CARBON STEEL
8	Spring Seat	BRASS	STAINLESS STEEL
9	Spring Adjust Screw	BRASS	STAINLESS STEEL
10	Lock Nut	BRASS	STAINLESS STEEL
11	Gasket	TEFLON	TEFLON
12	Set Screw	BRASS	STAINLESS STEEL
13	Spring Seat	BRASS	STAINLESS STEEL
14	Seal	Pb	Pb
1. SET PRESSURE(kgf/cm²){MPa}		22이하{2.2이하}	33이하{3.3이하}
2. WORKING TEMP(℃)		5~150	45~250
3. WORKING FLUID		NG, NL	NG, NL, CG, CL

FLUID SYMBOL
1. NG:Noncorrosive Gas
2. NL:Noncorrosive Liquid
3. CG:Corrosive Gas
4. CL:Corrosive Liquid

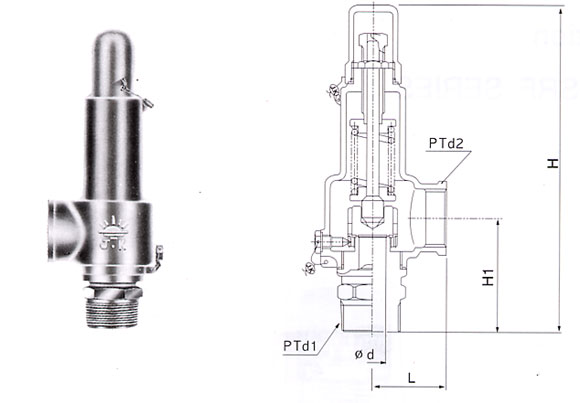

■ Dimensions (Unit: mm)

SIZE \| PART	Inlet d₁	Outlet d₂	L	H₁	H	Lift ℓ	d
15A	PT ½"	PT ¾"	42	62	190	0.8	13
20A	PT ¾"	PT ¾"	42	64	192	0.8	13
25A	PT 1"	PT 1"	44	70	200	1.2	18
32A	PT 1" ¼"	PT 1" ¼"	53	83	238	1.5	22
40A	PT 1" ½"	PT 1" ½"	57	85	266	1.8	27
50A	PT 2"	PT 2"	65	102	303	2.1	32
