[JRV-ST41, SF41]SERIES Reducing Valve(DIRECT ACTING TYPE) Old Model: JKRD-50

his valve is generally used for reducing the high pressure air and high pressure gas

详细描述

■ FEATURES

This valve is generally used for reducing the high pressure air and high pressure gas.
1. Its construction is direct acting type and is not needed an auxiliary equipment such as an electric and a compressed air.
2. When the changing the primary pressure, its associating secondary pressure can be adjusted less than ±8% range.
3. Its setting pressure can be adjusted easily by using the upper handle.
4. Its small diameter can allow high primary pressure to be reduced very much.

■ MATERIAL

NO	PART NAME	JRV-ST41,SF41
1	Body	STEEL	STAINLESS STEEL
2	Bonnet	CAST IRON	CAST ST. ST
3	Bottom Cover	STEEL	STAINLESS STEEL
4	Disc	SYNTHETIC RUBBER	SYNTHETIC RUBBER
5	Disc Holder	STAINLESS STEEL	STAINLESS STEEL
6	Spring	CARBON STEEL	CARBON STEEL
7	Diaphragm	SYNTHETIC RUBBER	SYNTHETIC RUBBER
8	Spring Seat	STEEL	STEEL
9	Adjust Screw	CARBON STEEL	STAINLESS STEEL
10	Hand Wheel	ROLLED STEEL	ROLLED STEEL
11	Gasket	ASBESTOS	NON ASBESTOS
12	Bolt	CARBON STEEL	STAINLESS STEEL
1.INLET PRESSURE		MAX 40 kgf/㎠{4.0MPa}
2.OUTLET PRESSURE		0.5~10.0 kgf/㎠{0.05~1.0MPa}
3.MAX REDUCING RATIO		10 : 1
4.WORKING TEMP		Max 80 ℃
5.WORKING FLUID		A.NG.NL
6.CONNECION		PT Screwed Pipe Flanged

Fluid symbol
1. A: AIR
2. NG: Noncorrosive Gas
3.NL : Noncorrosive Liquid

*Note
1.Minimum differential pressure: 0.5kgf/㎠ {0.05MPa}
2. Disc Seat Allowable Leakage : Below 0.5N㎖/min
3. Body Hydro. test : 1.5 times rated pressure
4. Fluid viscosity for liquid : 150cSt

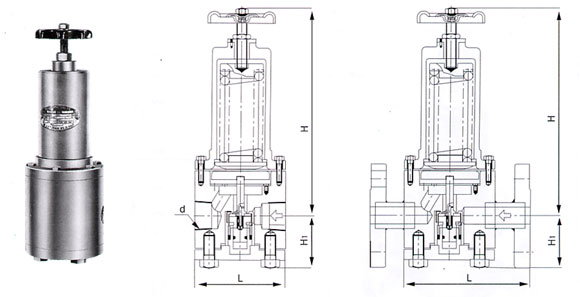

■ Dimensions (Unit: mm)

MODEL	JRV-ST41			JRV-SF41
SIZE	15A	20A	25A	15A	20A	25A
L	105	105	105	185	185	185
H1	60	60	60	60	60	60
H	266	266	266	266	266	266
d	PT½"	PT¾"	PT1"	10K,20K,30K,40K,FLAGE
