[JRV-ST11] Reducing Valve(DIRECT TYPE) Old Model: RV-C

Employment of special synthetic rubber diaphragm allows stable operation under a large flow.

详细描述

■ FEATURES

1. This valve can operate stably from extremely large flow by the employment of special synthetic rubber diaphragm.
2. Maximum reducing pressure is very big.
3. Minimum differential pressure is very small.
4. This valve can be used while the secondary pressure is a minimum pressure.
5. Simple valve structure and small moving part means less mal-functioning of the valve by foreign matters as well as an easy maintenance.
6. Screwed type connection allows an easy installation.

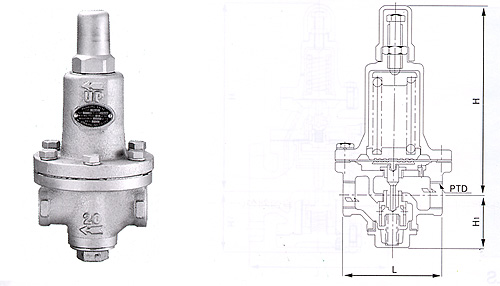

■ Dimensions (Unit: mm)

SIZE	d	L	H₁	H	A	(kg)
15	½"	110	57	207	124	5.0
20	¾"	110	57	207	124	5.0
25	1	120	63	223	140	6.5
32	1¼"	150	78	278	166	12.0
40	1-½"	150	78	278	166	12.0

■ SPECIFICATION

Size	15, 20, 25, 32, 40
Applicable Fluid	Steam
Fluid Temperature	MAX 184℃
Primary Applicable Pressure	MAX 10 kgf/㎠{1.0MPa}
Adjustable Secondary Pressure Range	0.2~2, 1.5~4 kgf/㎠{0.02~0.2,0.15~0.4MPa}
Max. Reducing Ratio	20 : 1
Min. Difference Pressure	0.2 kgf/㎠{0.02MPa}
Lock Up Pressure	MAX 0.2 kgf/㎠{002MPa}
OFFSET	0.2~ 2kgf/㎠ {0.02~0.2MPa} Spring : within 0.45kgf/㎠{0.045MPa} (Below 0.8 K of set pressure is within 0.5 times set pressure) 1.5~4kgf/㎠ Spring: within 0.6kgf/㎠
Min. Adjustable Capacity	2~5kg/h
Allowable Leakage	Below 0.05% of rated capacity
Connection	PT SCREW
MATERIAL	Body: Cast iron, TRIM: SUS, Diaphragm : Synthetic Rubber
Body Hydro. Test	20kgf/㎠{2.0MPa}

■ Usage

Multi-purpose, heater, kitchen appliance, medical equipment, etc. This pressure reducing valve works best for those use steam pressure reducing purpose.
