[JSV-HF91] Relief Valve Old Model: SR-HP
This is generally used for high pressure tracing equipment and pump as relief valve.

详细描述

■ FEATURES

1. Shows more excellent performance on the low capacity.
2.
Its main part is processed accurately with especially superior materials, so it shows excellent performance.
3. As an lap joint flange, the flange of inlet-side is easy to connect.

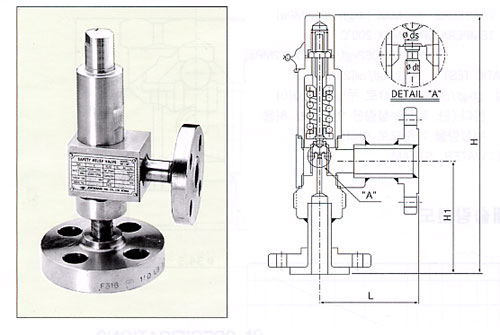

■ Dimensions  (Unit: mm)


Size
ds
dt
L
H1
H

15A×15A

5.0
4.3
95.0
110.0
245.0
20A×20A
5.0
4.3
95.0
110.0
245.0
25A×25A
5.0
4.3
95.0
110.0
245.0


■ SPECIFICATIONS

TYPE
Applicable FLUID
Applicable Pressure

(kgf/㎠)
{MPa}
Max. Operating Temp' (℃)
MATERIAL
CONNECTION
HYDRAULIC PRESSURE TEST
Body and TRIM
BONNET

PACKED TYPE

 WATER
Max 250
{25.0}
250
STAINLESS STEEL
STAINLESS STEEL
SCREW
&
FLANGE
400kgf/㎠
{40MPa}
