[JSV-FF41] Safety Valve with Full Bore Type Old Model: SSRF-HP(L)

This is generally used for large-size steam boiler, various pressure vessels and tracing equipment as safety valve and relief valve in pump.

详细描述

■ FEATURES

1. This valve is designed and produced based on the size of spring safety valve for steam and gas (KS B 6216).
2. Lever type could execute the discharge inspection manually at over 75% of discharge pressure.
3. This valve could obtain larger capacity than the low lift type and the high lift type.
4. Its main part is processed accurately with especially superior materials, so it shows excellent performance.
5. This product is approved by Korea Occupation Safety & Health Agency.

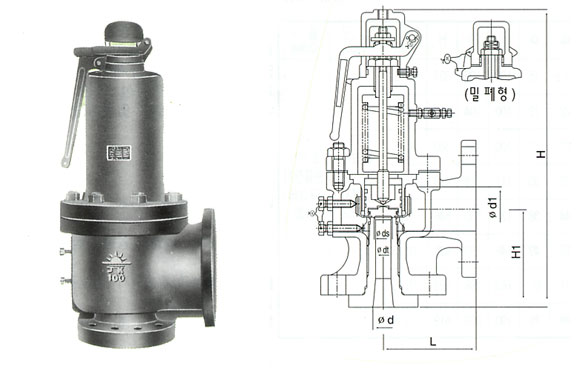

■ Dimensions (Unit: mm)

Size	d	d₁	dS	dt	L	H₁	H	Lift (ℓ)	Inlet	Outlet
15A×25A	15	25	13.5	11.5	96	90	285	3	KS 10K RF Flanged (KS B 6216)	KS 10K FF Flanged (KS B 1511)
20A×40A	20	40	16.5	14	115	90	345	3.75
25A×50A	25	50	19	16	117	103	385	4.75
40A×80A	40	80	36	30	150	140	615	7.5
50A×100A	50	100	44	38	175	155	670	9.5
65A×150A	65	150	58	48	215	202	820	12.25
80A×150A	80	150	71	61	206	187	870	15.25
100A×200A	100	200	90	76	255	228	960	19.0

■ SPECIFICATIONS

TYPE	Applicable FLUID	Applicable Pressure (kgf/㎠)｛MPa｝	Max. Operating Temp' (℃)	MATERIAL		CONNECTION	HYDRAULIC PRESSURE TEST
				Body and TRIM	BONNET
LEVER TYPE	AIR, GAS	22~33 {2.2~3.3}	400	CAST CARBON STEEL	STAINLESS STEEL	INLET : KS 10K RF Flanged (KS B 6216) OUTLET : KS 10K FF Flanged (KS B 1511)	66kgf/㎠ {6.6MPa}
PACKED TYPE	LIQUIDS, WATER (HOT WATER)

* The working pressure for 33kgf/㎠~49.5kgf/㎠ are available upon request. For MODEL : JSV-FF51(SSRF-HP45), ANSI and JIS flanged are available upon request.
