[JSV-FF21] Safety Valve with Full Bore Type Old Model: SSRF(L)

This is generally used for large-size steam boiler, various pressure vessels and tracing equipment as safety valve and relief valve in pump

详细描述

■ FEATURES

1. This valve is designed and produced based on the size of spring safety valve for steam and gas (KS B 6216).
2. Lever type could execute the discharge inspection manually at over 75% of discharge pressure.
3. This valve could obtain larger capacity than the low lift type and the high lift type.
4. Its trim part is processed accurately with especially superior materials, so it shows excellent performance.

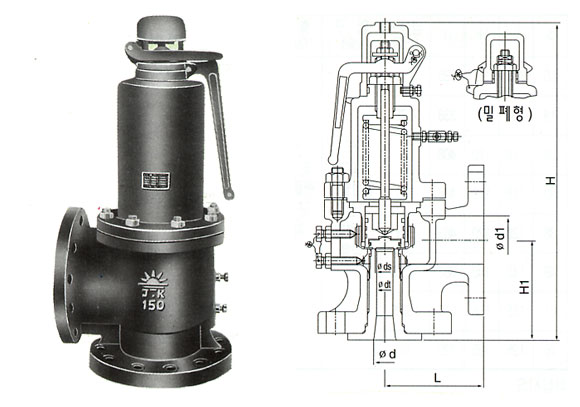

■ Dimensions (Unit: mm)

Size	d	d₁	dS	dt	L	H₁	H	Lift (ℓ)	Inlet	Outlet
15A×25A	15	25	14.5	11.5	96	88	289	3	KS 10K RF Flanged (KS B 6216)	KS 10K FF Flanged (KS B 1511)
20A×40A	20	40	17.5	15	100	100	299	3.75
25A×50A	25	50	22	19	100	104	338	4.75
32A×65A	32	65	29	24	115	119	406	6
40A×65A	40	65	35	30	115	119	406	7.5
50A×80A	50	80	44	38	128	130	476	9.5
65A×100A	65	100	57	49	144	150	565	12.25
80A×125A	80	125	71	61	162	168	622	15.25
100A×150A	100	150	88	76	190	203	731	19.0
125A×200A	125	200	114	95	220	232	907	24.0
150A×200A	150	200	133	115	225	230	953	28.75
200A×250A	200	250	175	150	275	280	1121	37.5

■ SPECIFICATIONS

TYPE	Applicable FLUID	Applicable Pressure (kgf/㎠) {MPa}	Max. Operating Temp' (℃)	MATERIAL		CONNECTION	HYDRAULIC PRESSURE TEST
				Body and TRIM	BONNET
LEVER TYPE	AIR, GAS	0.35~1.0 {0.035~0.1} 1.0~3.0 {0.1~0.3} 3.0~6.0 {0.3~0.6} 6.0~12.0 {0.6~1.2} 12.0~22.0 {1.2~2.2}	250	CAST CARBON STEEL	STAINLESS STEEL	INLET : KS 10K RF Flanged (KS B 6216) OUTLET : KS 10K FF Flanged (KS B 1511)	44kgf/㎠ {4.4MPa}
PACKED TYPE	LIQUIDS, WATER (HOT WATER)

* ANSI, JIS flanges are available upon request.
